COB LED Display

JCVISION COB LED

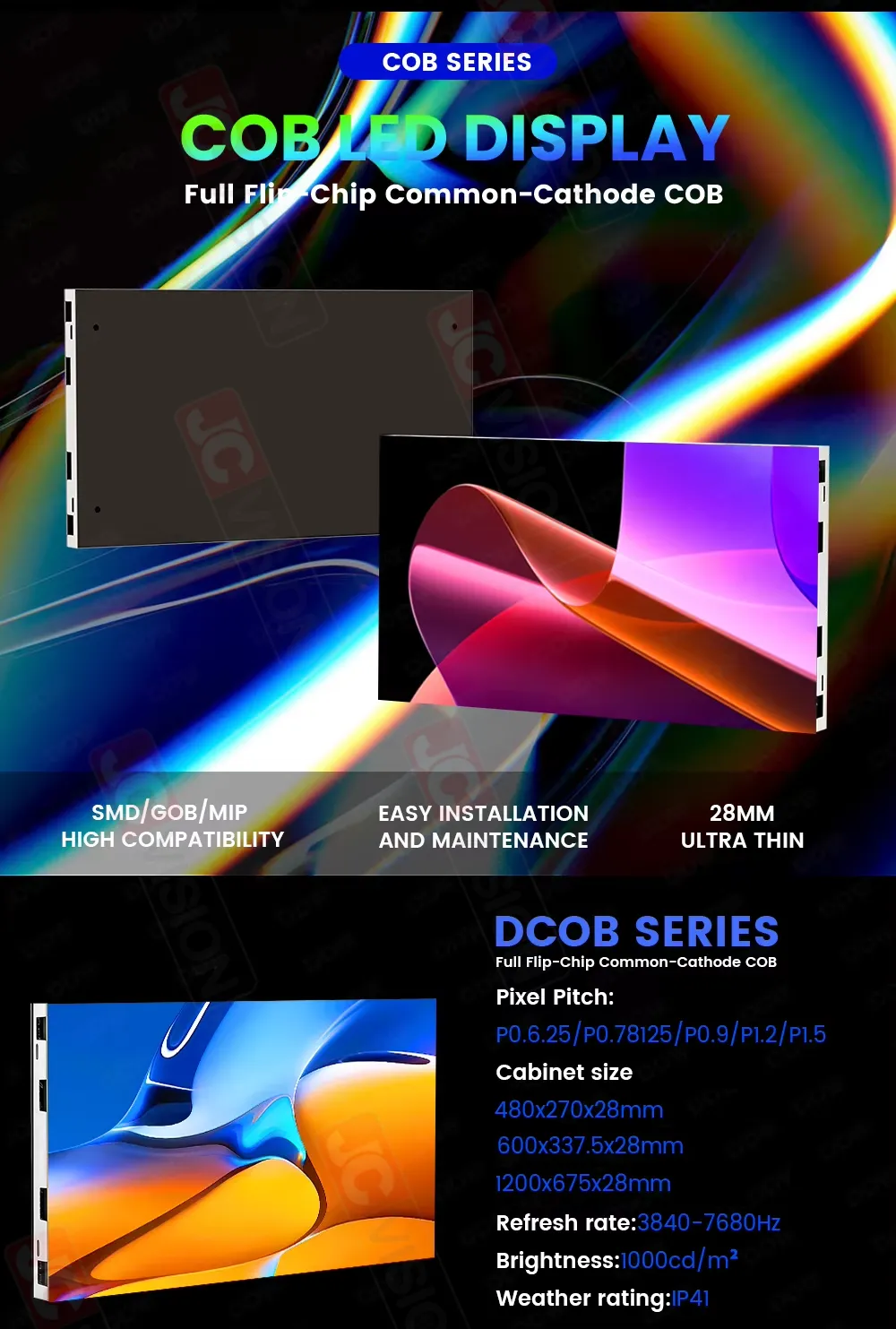

JCVISION COB series LED Display
JC-P0.625/P0.78125/P0.9/P1.2/P1.5
Ratio: 16 : 9
Size 1: 480×270×28mm
Size 2: 600×337.5×28mm
Size 3: 1200×675×28mm,
Features with high flatness, Front service design for easy install and disassemble, High definition quality image with excellent visual performance.
Quantity
Contact Now
Feature Description
  • - Ultra-thin and light body design
  • - 2000nits high brightness indoor led display
  • - Beyond 1,000,000:1 high contrast ratio
  • - 24 bits Grayscale
  • - Full front maintenance. High precision adjustment
  • - Universal Panel for all pixels

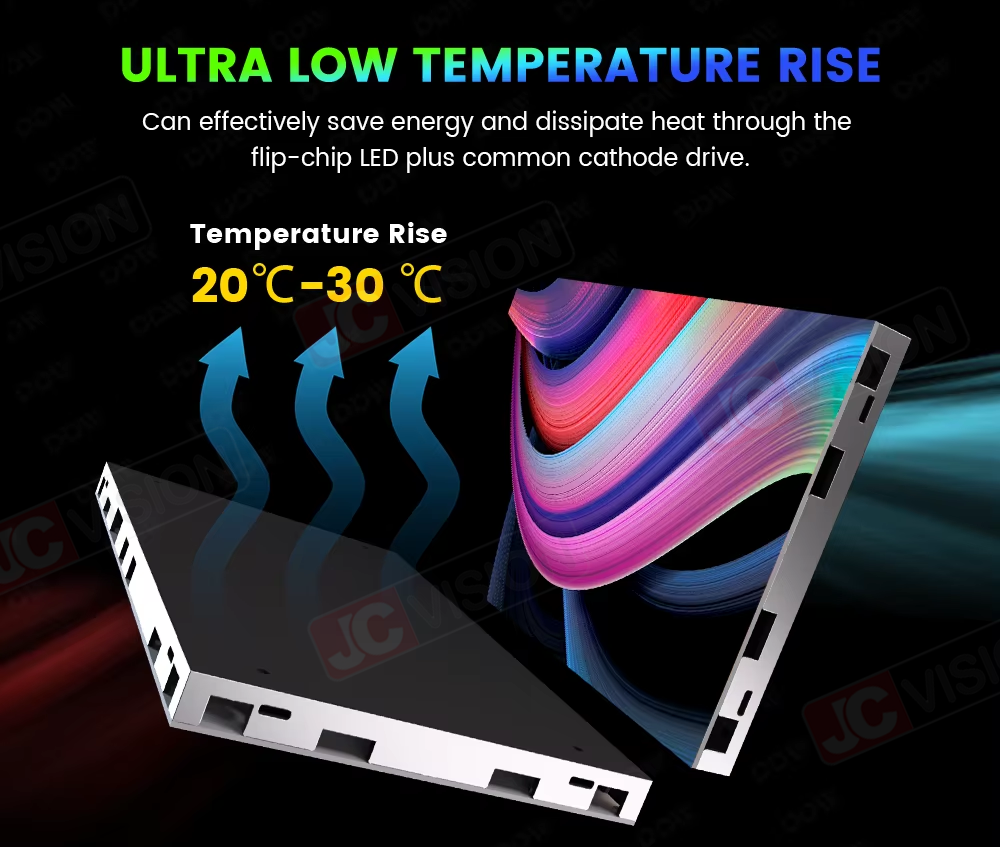

  • - Low power consumption & low temperature rise indoor led display screen
Pixel Pitch (mm)
0.75
1
1.25
1.5
Cabinet Resolution (mm)(W×H)
640×360
480×270
384×216
320×180
Brightness (nits)(Colour temp 6500K)
Factory delivery standard: 1000 after calibration
Pixel Density (dots/m²)
1,777,778
1,000,000
640,000
444,444
Cabinet Size (mm)(W×H×D)
480×270×28
Cabinet Weight (kg)
3.11
Refresh Rate (Hz)
3840~7680
Cabinet Flatness (mm)
≤0.1
Pixel Configuration

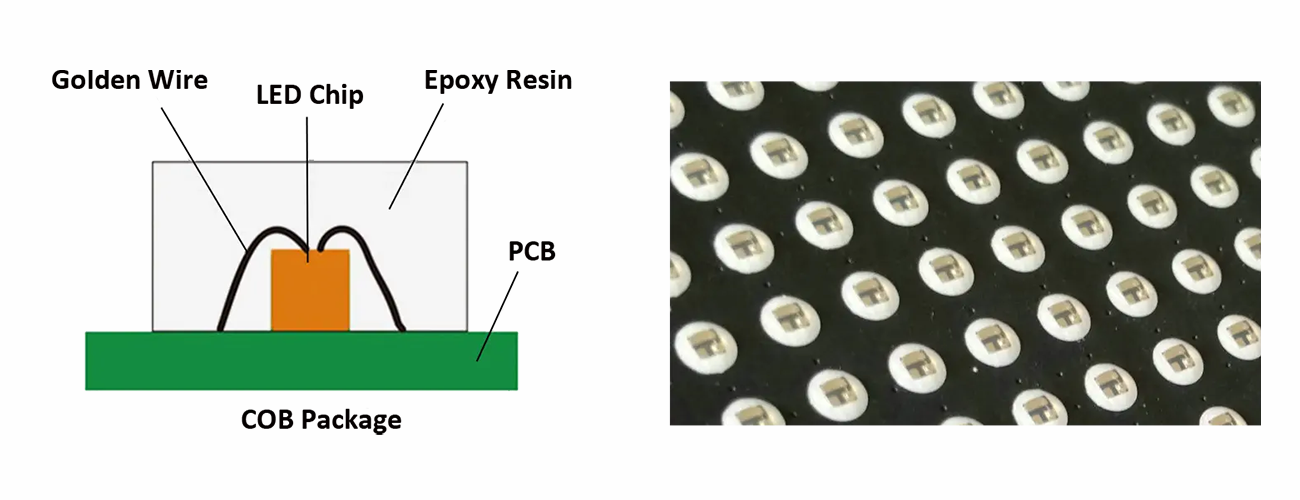

COB
Contrast Ratio
≤1,000,000:1, Ultra high contrast ratio
Gray Scale (bit)
16 (Control system algorithm processing)
Max. Power Consumption (W/m²)
≤600
≤500
≤450
Avg. Power Consumption (W/m²)
≤200
≤170
≤150
Pixel Pitch (mm)
0.78125
0.9375
1.25
1.5625
Cabinet Resolution (mm)(W×H)
768×432
640×360
480×270
384×216
Brightness (nits)(Colour temp 6500K)
Factory delivery standard: 1000 after calibration
Pixel Density (dots/m²)
1,638,400
1,137,778
640,000
409,600
Cabinet Size (mm)(W×H×D)
600×337.5×28
Cabinet Weight (kg)
4.69
Refresh Rate (Hz)
3840~7680
Cabinet Flatness (mm)
≤0.1
Pixel Configuration
COB
Contrast Ratio
≤1,000,000:1, Ultra high contrast ratio
Gray Scale (bit)
16 (Control system algorithm processing)
Max. Power Consumption (W/m²)
≤600
≤500
≤450
Avg. Power Consumption (W/m²)
≤200
≤170
≤150
