HD LED DISPLAY
JCVISION HD LED
JCVISION HD LED display technology has revolutionized visual communication, providing stunning and vibrant visuals with high clarity and detail. These displays are increasingly popular, ranging from home entertainment to large-scale public displays, due to their ability to deliver captivating visuals with superior image quality. The latest LED packaging technology has enabled small pixel spacing LED displays to achieve seamless 2K, 4K and even 8K resolutions, making LED video walls more popular with the public. In recent years, displays with 1.56mm, 1.2mm, and 0.9mm spacing have become mature, providing even higher-quality displays. This technology ensures that the image on the display is sharp and clear, even at a close range. The visual impact of HD LED displays is unmatched, providing an immersive visual experience that captivates audiences and leaves a lasting impression. With advanced content management systems, real-time updates and dynamic content delivery can be achieved, ensuring that messaging is always engaging and up-to-date. The HD LED display is an ideal solution for businesses and organizations seeking to elevate their brand messaging and create memorable experiences for their audience.
Quantity
Features
- - Low brightness and high gray technology, 10000:1, low power consumption
- - 3840Hz refresh rate,real and natural high dynamic picture display ,no smear
- - Wide color gamut, uniform color, no rainbow effect, delicate and soft picture
- - Natural heat dissipation of the cabinet, ultra- quiet fanless design, reducing screen heat and noise
- - Full front maintenance. High precision adjustment
- - Optional power supply and signal dual backup function

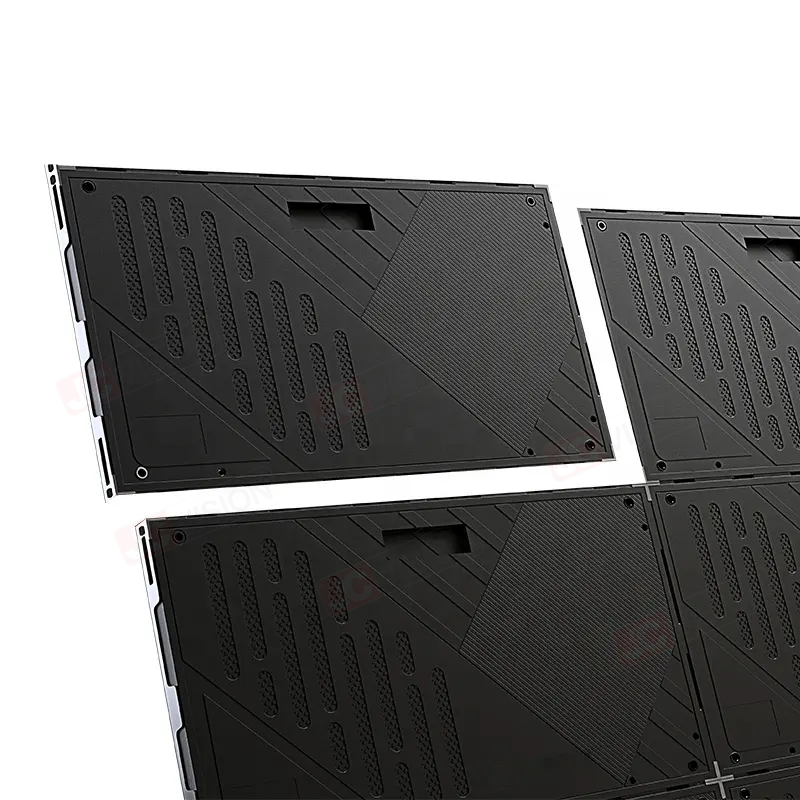

- - Die-cast aluminum design, seamless border less, infinite splicing
| Pixel Pitch | 0.78125 | 0.9375 | 1.25 | 1.5625 | 1.875 |
| LED Type | Mini 4-in-1 | Mini 4-in-1 | SMD1010 | SMD1010/1212 | SMD1010/ SMD1515 |
| Physial Density (dots/m²) | 1638400 | 1137778 | 640000 | 409600 | 284444 |
| Module Resolution | 192x216 | 320x180 | 240x135 | 192x108 | 160x90 |
| Module Size (WxH) | 150x168.75 | 300x168.75 | 300x168.75 | 300x168.75 | 300x168.75 |
| Cabinet Size(mm) | 600x337.5x27.5 | ||||
| Cabinet Resolution | 768x512 | 640x360 | 480x270 | 384x216 | 320x180 |
| Module QTY /Cabinet (WxH) | 4x2 | 2x2 | 2x2 | 2x2 | 2x2 |

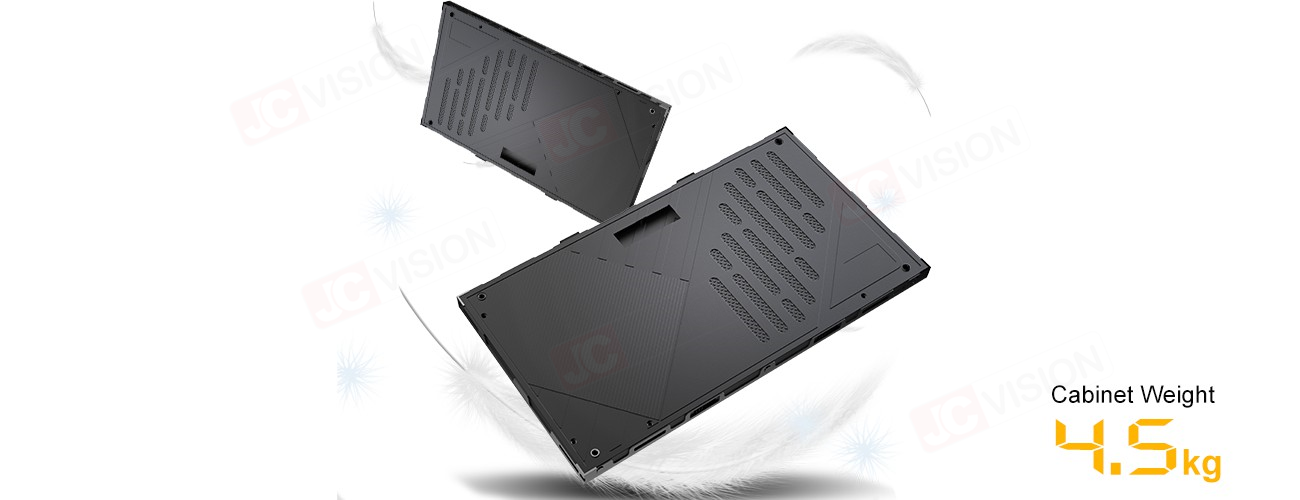

| Cabinet Weight(kg) | 4.5 | ||||
| Maintenance Mode | Front access | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| LED brightness correction | Yes | ||||
| Brightness | ≥600 | ||||
| Color Temperature(K) | 1000-18500 Adjustable | ||||
| Grey Level | 16 bit | ||||
| Viewing Angle(H/V) | 170*/170 | ||||
| Brightness/Color Uniformity | ≥99.8% | ||||
| Contrast Ratio | 10000:01 | ||||
| Frame Frequency | 50/60 | ||||
| Drive Mode | Static, 1/48 Scan | Static, 1/46 Scan | Static, 1/45 Scan | Static, 1/48 Scan | Static, 1/45 Scan |
| Refresh Rate (Hz) | 3840 | ||||
| Max Power Consumption（W/m²） | 420 | ||||
| Awerage Power Consumption(W/m²） | 100 | ||||
| IP Grade | IP31 | ||||
| Input Power | AC90-264V, 47-63 Hz | ||||
| Working Temperature/Humidity（°C/RH） | -20-60°C / 10%-85% | ||||
| Storage Temperature/Humidity（°C/RH） | -20-60°C / 10%-85% | ||||
